Shen Lan

Primary tabs

  • View(active tab)
  • Compare With Previous

Licensed

Licenced to fish in areas:

  • Subarea 48.1
  • Subarea 48.2
  • Subarea 48.3
  • Subarea 48.4
Port Photo:
Starboard Photo:
Stern Photo:

View all available images

Effective Date:
30 May 2024
CCAMLR Vessel ID:
104925
Owner:
Jiangsu Sunline Deep Sea Fishery Co., Ltd
Operator:
Jiangsu Sunline Deep Sea Fishery Co., Ltd
Callsign:
BZVK5
Built in Year:
2020
Registration Number:
19JF520
IMO Number:
9849332
Built at Location:
CSSC HUANGPU WENCHONG SHIPBUILDING COMPANY LIMITED, Guangzhou, China
Flag:
China
Crew Count:
99
Beam:
21.60m
Gross Tonnage:
10788.00t
Length:
111.20m
Engine Power:
8000.00kW
Carrying Capacity:
3236.00t
Fish Holds Capacity:
4904.00m3
Fish Holds Count:
3
Port of Registry:
Lianyungang
External Markings:

Name: SHEN LAN

Call sign:BZVK5

VMS Details:

INM-C

Manufacturer： Thrane & Thrane

Model：SAILOR 6110

Serial number：18152454

ID Number：441204271

Manufacturer： Collecte Localisation Satellites

Model：TRITON

Serial number：TM0000121625

ID Number：519345

Fishing Master:
Chen Jian, Lu Jian Qiang, Chinese
Comms Details:

Tel: 0086 17499950509

e-mail:master [dot] shenlan [at] cmigroup [dot] com [dot] cn

Ice Classification:
B1
  • History
  • Licences
  • Fishing Gear

History

Effective From Vessel Name Callsign Flag Owner(s)
30 May 2024 Shen Lan BZVK5 China Jiangsu Sunline Deep Sea Fishery Co., Ltd
22 May 2023 to 30 May 2024 Shen Lan BZVK5 China Jiangsu Sunline Deep Sea Fishery Co., Ltd
27 May 2022 to 22 May 2023 Shen Lan BZVK5 China Jiangsu Sunline Deep Sea Fishery Co., Ltd
25 May 2021 to 27 May 2022 Shen Lan BZUK5 China
29 May 2020 to 25 May 2021 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
28 May 2020 to 29 May 2020 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
27 May 2020 to 28 May 2020 Shenlan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
20 Jun 2019 to 27 May 2020 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
31 May 2019 to 20 Jun 2019 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
31 May 2019 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
30 May 2019 to 31 May 2019 Shen Lan BZUK5 China Jiangsu Sunline Deep Sea Fishery Co. Ltd
30 May 2019 Shen Lan China Jiangsu Sunline Deep Sea Fishery Co. Ltd
15 May 2019 to 30 May 2019 Shen Lan China

Licences

Authority Period Bottom Fishing Authorised Target Species Areas
China 08 Dec 2023 to 30 Nov 2024 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
China 01 Dec 2022 to 30 Nov 2023 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
China 28 Dec 2021 to 30 Nov 2022 Not Applicable Euphausia superba Subarea 48.1, Subarea 48.2, Subarea 48.3, Subarea 48.4
Gear Effective From
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 118463-Net 3_Marine mammal exclusion device_Shen Lan_2022-2023.png
Gear diagram:
download attachment 118463-net-3shen-lan2022-2023.png
 01 Dec 2021
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 120829-Net 3_Marine mammal exclusion device_Shen Lan_2023-2024.jpg
Gear diagram:
download attachment 120829-net3-gear-diagramshen-lan2023-2024.jpg
 01 Dec 2023
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net

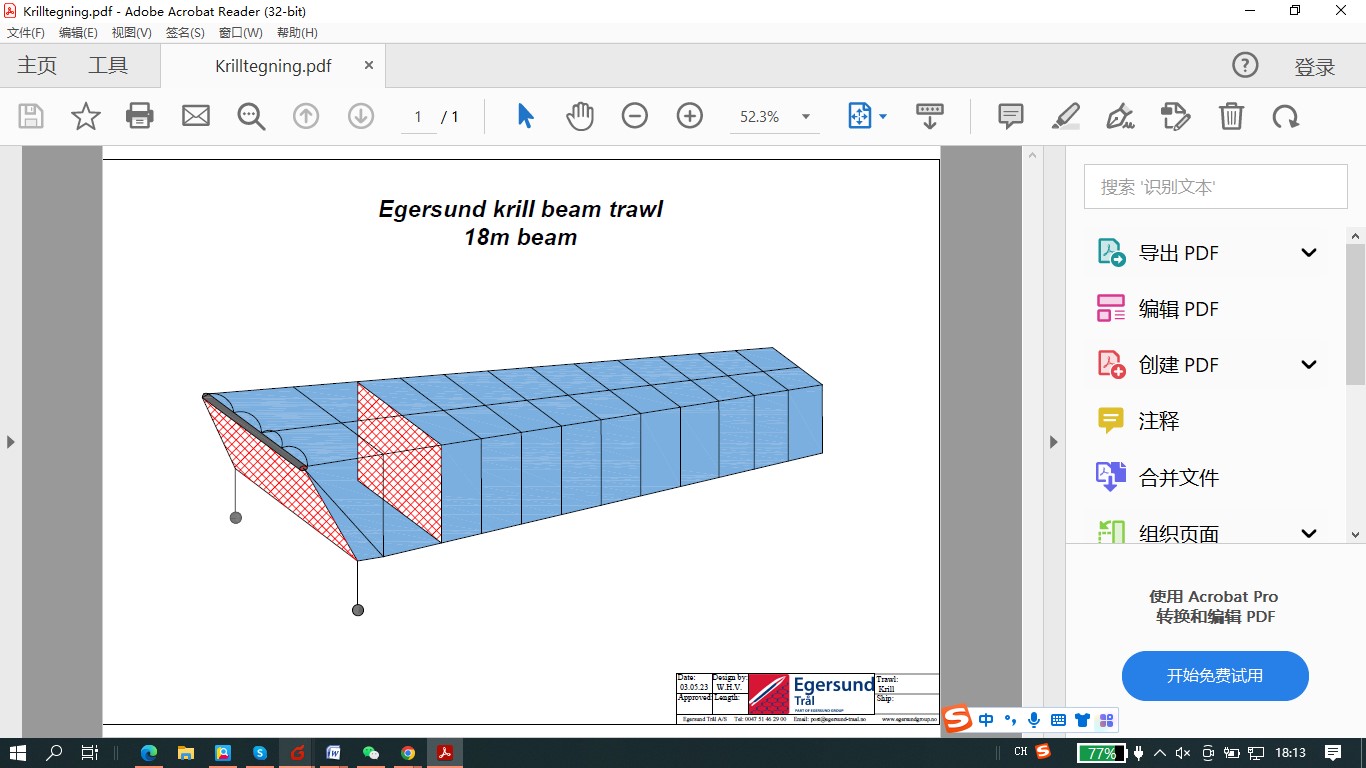

Mammal exclusion device diagram:
download attachment 123481-Net 1_Marine mammal exclusion device_Shen Lan_2024-2025.jpg
Gear diagram:
download attachment 123481-net-1-diagramshen-lan2024-2025.jpg
 01 Dec 2024
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123483-Net 3_Marine mammal exclusion device_Shen Lan_2024-2025.jpg
Gear diagram:
download attachment 123483-net-3-diagramshen-lan2024-2025.jpg
 01 Dec 2024
Midwater Beam Trawl
Net-mouth height:
2m
Net-mouth width:
4m
Total net length:
8m
Codend mesh size:
10mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123485-Net 5_Marine Mammal exclusion device_Shen Lan_2024-2025.jpg
Gear diagram:
download attachment 123485-net-5-diagrambiological-sampling-netshen-lan2024-2025.png
 31 May 2024
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 120828-Net 1_Marine mammal exclusion device_Shen Lan_2023-2024.jpg
Gear diagram:
download attachment 120828-net1-gear-diagramshen-lan2023-2024.jpg
 01 Dec 2023
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
152m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 104959-Net1-Mammal exclusion device diagram-Shen Lan-2019.jpg
Gear diagram:
download attachment 104959-net1-gear-diagram-shen-lan-2019.jpg
 15 May 2019 to 30 Nov 2022
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
123m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 118461-Net 4_Marine mammal exclusion device_Shen Lan_2022-2023.png
Gear diagram:
download attachment 118461-net-4shen-lan2022-2023.png
 01 Dec 2021
Midwater Beam Trawl
Net-mouth height:
20m
Net-mouth width:
18m
Total net length:
123m
Codend-mouth height:
2.5m
Codend-mouth width:
2.5m
Codend length:
29m
Codend mesh size:
16mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123484-Net 4_Marine mammal exclusion device_Shen Lan_2024-2025.png
Gear diagram:
download attachment 123484-net-4diagramshen-lan2024-2025.png
 01 Dec 2024
Midwater Otter Trawl
Net-mouth height:
18m
Net-mouth width:
23m
Total net length:
162m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 104960-Net2-Mammal exclusion device diagram-Shen Lan-2019.jpg
Gear diagram:
download attachment 104960-net2-gear-diagram-shen-lan-2019.jpg
 15 May 2019 to 30 Nov 2022
Midwater Otter Trawl
Net-mouth height:
18m
Net-mouth width:
23m
Total net length:
168.8m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 118462-Net 2_Marine mammal exclusion device_Shen Lan_2022-2023.png
Gear diagram:
download attachment 118462-net-2shen-lan2022-2023.png
 01 Dec 2022 to 30 Nov 2023
Midwater Otter Trawl
Net-mouth height:
2m
Net-mouth width:
4m
Total net length:
8m
Codend mesh size:
10mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123296-Net4_Marine Mammal exclusion device diagram_Shen Lan_2023-2024.jpg
Gear diagram:
download attachment 123296-net-4-biological-sampling-net-diagram.docx
 07 May 2024
Midwater Otter Trawl
Net-mouth height:
18m
Net-mouth width:
23m
Total net length:
168.8m
Codend-mouth height:
2m
Codend-mouth width:
2m
Codend length:
24m
Codend mesh size:
11mm
Mammal exclusion device type:
Large mesh panel across mouth/first section of net
Mammal exclusion device diagram:
download attachment 123482-Net 2_Marine mammal exclusion device_Shen Lan_2024-2025.png

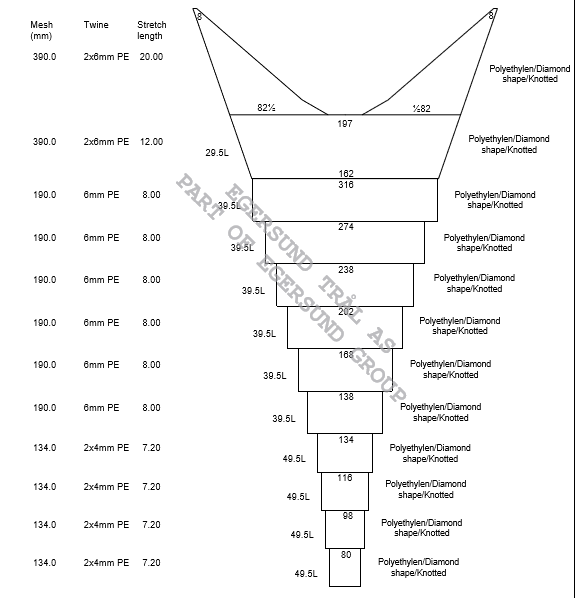

Gear diagram:
download attachment 123482-net-2-diagramshen-lan2024-2025.png
 01 Dec 2024
